| The new SiliconDrive II 2.5" Solid State Disk (SSD) Drives are developed by the californian manufacturer SiliconSystems
The used memory and controller technology makes the SiliconDrive products ideal for industrial applications.
The standard product comes with the unique SiliconSystems technologies:
- Wear-Leveling
- PowerArmor
- SiSMART
- SiSecure (formerly only optional available)

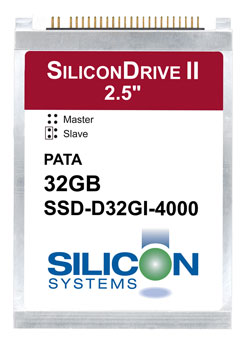

SiliconDrive II 2.5" Drive PATA
ATA-5/Ultra66 interface
Capacity: 4 GB to 32 GB
Form factor: Standard 2.5" HDD 9.5 mm height
Standard temperature range from 0°C to +70°C (operating).
Optional extended industrial temperature range from –40°C to +85°C (operating).
Power requirement: 5 Volt.
Please download data sheets from the right column of the web page.
For further informations please contact our sales team, division SiliconSystems.
Top
What are Solid State Disks?
The common feature of all Solid State Disks is that the data is stored on Flash chips. Solid State Disks are insensitive to shock, vibration, temperature effects and extreme air pressure changes and are highly resistant to EMC and ESD.
Solid State Disks do not have sensitive rotating components. They are totally silent in operation and have a low current consumption.
You can write, read and delete the data just like a conventional hard disk. Mechanical hard disks in mobile systems and industrial computers can be replaced by pin-compatible Solid State Disks.
Top
. |
|
Available versions
(with Item number)
4 GB SiliconDrive II™ 2.5" Drive PATA
altec Item no.: B29SS4096P
SiliconSystems Item no.: SSD-D04G-4000
8 GB SiliconDrive II™ 2.5" Drive PATA
altec Item no.: B29SS8192P
SiliconSystems Item no.: SSD-D08G-4000
16 GB SiliconDrive II™ 2.5" Drive PATA
altec Item no.: B29SS16384P
SiliconSystems Item no.: SSD-D16G-4000
32 GB SiliconDrive II™ 2.5" Drive PATA
altec Item no.: B29SS32768P
SiliconSystems Item no.: SSD-D32G-4000
Versions available for an extended
industrial temperature range: –40°C to +85°C
(operating).
4 GB SiliconDrive II™ 2.5" Drive PATA i-Temp.
altec Item no.: B29SS4096IP
SiliconSystems Item no.: SSD-D04GI-4000
8 GB SiliconDrive II™ 2.5" Drive PATA i-Temp.
altec Item no.: B29SS8192IP
SiliconSystems Item no.: SSD-D08GI-4000
16 GB SiliconDrive II™ 2.5" Drive PATA i-Temp.
altec Item no.: B29SS16384IP
SiliconSystems Item no.: SSD-D16GI-4000
32 GB SiliconDrive II™ 2.5" Drive PATA i-Temp.
altec Item no.: B29SS32768IP
SiliconSystems Item no.: SSD-D32GI-4000
Standard product with suffix -4000 comes
with the following features:
– RoHS 6/6 compliant
– DMA support
– Autosense: Fixed in IDE Mode, Removable in PCMCIA Mode
– SiSMART
- SiSecure
- PowerArmor
| |
