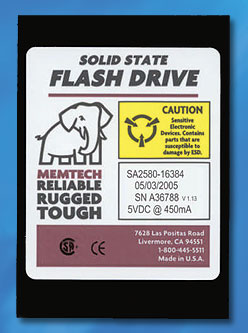

The SA2580 Panther series of solid-state flash drives
are a Serial ATA compliant memory module offered in an
extremely low profile 2.5 inch drive form-factor with read/write performance
up to 40 MB/sec.
2.5" Drive with 1.5 GBit SATA interface (7-pin
signal segment, 15-pin power segment). ATA/ATAPI-7 compliant,
SATA 1.0.
Available in standard capacities ranging
from 4 to 64 GB, all in the same, 9.5 mm low profile
solution using SLC
(Single Level Cell) NAND Flash.
For the following temperature ranges (operating) available:
Commercial (0°C to +70°C)
Extended (–20°C to +75°C)
Industrial (–40°C to +85°C)
Storage temperature (non-operating) from –55°C
to +125°C.
Completely solid state – no moving parts.
Powerful ECC (32 Bit Reed-Solomon) and proprietary wear leveling
for exceptional data reliability.
SMART (Self-Monitoring, Analysis and Reporting Technology)
compliant.
5 volt, low power operation.
Shock 1500 G (operating); Vibration
16,3 G random (operating).
Up to 40 MByte/sec sustained Read/Write performance; 20 MByte/sec
(SA2582 Panther), 30 MByte/sec (SA2583
Panther), 40 MByte/sec
(SA2584 Panther).
Erase/Write endurance 8 million cycles.
10 year data integrity.
7 year product warranty.
Exclusive distributor for Germany,
Austria and Switzerland is altec ComputerSysteme
GmbH. |
|
Versions (with item number)
4096 MB SA2582 Panther – 20 MB/s – 20MT40
8192 MB SA2582 Panther – 20 MB/s – 20MT81
16384 MB SA2582 Panther – 20 MB/s – 20MT163
32768 MB SA2582 Panther – 20 MB/s – 20MT327
65536 MB SA2582 Panther – 20 MB/s – 20MT655
6144 MB SA2583 Panther – 30 MB/s – 21MT61
12288 MB SA2583 Panther – 30 MB/s – 21MT122
24576 MB SA2583 Panther – 30 MB/s – 21MT245
8192 MB SA2584 Panther – 40 MB/s – 22MT81
16384 MB SA2584 Panther – 40 MB/s – 22MT163
Other memory capacities as shown above are also available. Please
ask for further details.
What are Solid State Disks?
The common feature of all Solid State Disks is that the data
is stored on Flash chips. Solid State Disks are
insensitive to shock, vibration, temperature effects and
extreme air pressure changes and are highly resistant to
EMC and ESD.
Solid State Disks do not have sensitive
rotating components. They are totally silent in
operation and have a low current consumption.
You can write, read and delete the data just like
a conventional hard disk. Mechanical hard disks
in mobile systems and industrial computers can be replaced
by pin-compatible Solid State Disks.
Memtech Solid State Disks
A Wear-Leveling Algorithm is implemented
in all drives, as well as the Kicker™ Hold
Up Circuit intended to prevent drive destruction if
writing is suddenly interrupted.
Every drive is subjected to Memtech’s exacting EnduroTest™ in
which each drive is fully tested under environmental and
voltage extremes to guarantee data integrity under even the
harshest conditions.
Optionally, all products are available with a Security
Erase feature and with a Conformal
Coating to protect them against moisture. |
|
