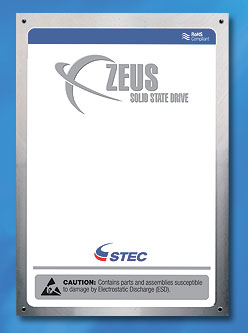

The Zeus 2.5" PATA Solid State
Drive is a 9.5 mm low profile solution
with a sustained read/write performance
up to 40/26 MB/sec and capacities
up to 64 GB.
2.5" Drive with 44-pin IDE UDMA-66
interface and 2 mm
grid. ATA-5 compliant, PIO Mode 0-4 and UDMA Mode 0-4
Support.
Completely solid state – no moving parts.
Available in capacities ranging from 8 to 64 GB using SLC (Single
Level Cell) NAND Flash.
Up to 40/26 MByte/sec sustained read/write performance.
5 volt ±5 %; low power operation.
Environmental Specifications:
For the following temperature ranges (operating) available:
Commercial (0°C to +70°C)
Industrial (–40°C to +85°C)
Storage temperature (non-operating) from –55°C to +95°C.
Humidity 5 to 95 %, non condensing.
Altitude 80.000 ft.
Shock 1500 G (operating); Vibration 16.3 G random
(operating) – both MIL-STD-810F.
Endurance:
Powerful EDC (Error Detection) and ECC (Error Correction),
wear-leveling and bad block mapping algorithms for exceptional
data reliability.
10 year data integrity.
5 year product warranty.
Optional:
Four different Purge Features (Security Erase).
Conformal Coating to protect the drive against moisture. | |
Versions (with item number)
8 GB Zeus 2.5" PATA – 40/26 MB/s
altec Item no.: B60MT4A8
STEC Item no.: Z4A28CU
16 GB Zeus 2.5" PATA – 40/26 MB/s
altec Item no.: B60MT4A16
STEC Item no.: Z4A216CU
32 GB Zeus 2.5" PATA – 40/26 MB/s
altec Item no.: B60MT4A32
STEC Item no.: Z4A232CU
64 GB Zeus 2.5" PATA – 40/26 MB/s
altec Item no.: B60MT4A64
STEC Item no.: Z4A264CU
Versions available for an extended
industrial temperature range: –40°C to 85°C
(operating).
altec Item no.: B60MT4AxxI
STEC Item no.: Z4A2xxCUI
Other memory capacities and/or sustained read/write rates as shown above are also available. Please
ask for further details.
What are Solid State Disks?
The common feature of all Solid State Disks is that the data
is stored on Flash chips. Solid State Disks are
insensitive to shock, vibration, temperature effects
and extreme air pressure changes and are highly resistant
to EMC and ESD.
Solid State Disks do not have sensitive
rotating components. They are totally silent in
operation and have a low current consumption.
You can write, read and delete the data just like
a conventional hard disk. Mechanical hard disks
in mobile systems and industrial computers can be replaced
by pin-compatible Solid State Disks.
|
|
