| State-of-the-Art High performance
3.5" Solid State Disk.
SCSI Ultra Fast Wide, Single Ended, 40 MB/Sek.
Data Security
The intelligent Power-Management with external battery buffering and backup
HDD prevents accidental data loss due several situations, e.g.:
The inactivity of the access to Athena-2plus™, the controlling
time period is adjustable.
Power interruption, time for backup start is adjustable.
Additional backup
starts:
on user’s demand and
via diagnostic port.
Multistage EDC (Error Detection and Correction) for highest data
integrity.
High shock- and vibration
endurance.
Low power consumption.
Extended temperature range.
External battery buffering for date retention
and backup Effectivity.
Extremely high access to programs and data.
Maintenance free, data security.
Abrasion-free long term operation

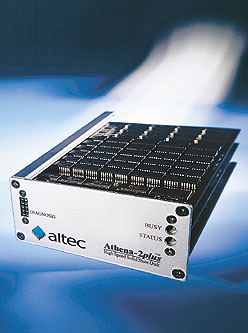

The Athena-2 plus™ offers capacities from 200 MByte to 1 GByte
(incl. 20%
ECC) in a 3.5" form factor or to max. 4.6 GByte cascaded.
Connected
to a standard SCSI-Controller, the Athena-2 plus™ replaces a standard
harddisk.
High
Speed (read/write 20 MB/sec. respectively up to 40 MB/sec on
wide ultra SCSI) and best reliability predestine the Athena-2 plus™ for
sophisticated applications. This could be especially applications working
under conditions of harsh and rugged environment in industrial or military
sector, high speed measurement systems or database applications.
|
Versions (with item number)
200 MB Athena-2 plus – 34AL-200
400 MB Athena-2 plus – 34AL-400
600 MB Athena-2 plus – 34AL-600
800 MB Athena-2 plus – 34AL-800
1 GB Athena-2 plus – 34AL-010
3.5" Battery Managing System without HDD Backup – 34AL-112
3.5" Battery Managing System incl. IDE-HDD Backup for 1 GB
– 34AL-113
|
