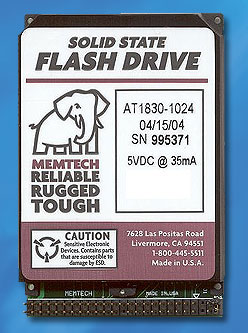

| The AT1830 Mustang
is the smallest member of the Memtech
series of IDE solid state drives, available in an extremely
compact 1.8" drive form-factor.
It employs sector erasable NAND EEPROMs (Flash Memory) to
deliver up to 8 GBytes of uncompressed, nonvolatile
solid state storage in an extremely small, rugged form-factor.
Compact 1.8" drive form factor with 44-pin, 2 mm grid
IDE interface. PIO Mode 4, no DMA.
64 MByte to 8 GByte uncompressed capacity.
For the following temperature ranges (operating) available:
Commercial (0°C to +70°C)
Extended (–20°C to +75°C)
Industrial (–40°C to +85°C)
Storage temperature (non-operating) from –55°C
to +125°C.
Completely solid state – no moving parts.
Powerful ECC (32 Bit Reed-Solomon) and proprietary
wear leveling for exceptional data reliability.
3.3 to 5 volt, low power operation.
1000 G operating shock; 15 G operating vibration.
4.0 MByte/sec sustained read throughput; 3.5 MByte/sec
sustained write throughput.
10 year data integrity.
Pending CE and CSA/UL compliant.
Exclusive distributor for Germany,
Austria and Switzerland is altec
ComputerSysteme GmbH.
|
|
Available versions (with item number)
256 MB AT1830 Mustang – B30MT256
512 MB AT1830 Mustang – B30MT512
1024 MB AT1830 Mustang –
B30MT10
2048 MB AT1830 Mustang –
B30MT20
4096 MB AT1830 Mustang –
B30MT40
8192 MB AT1830 Mustang –
B30MT81
Other memory capacities as shown above are also available.
Please ask for further details.
What are Solid State Disks?
The common feature of all Solid State Disks is that the data
is stored on Flash chips. Solid State Disks are
insensitive to shock, vibration, temperature effects and
extreme air pressure changes and are highly resistant to
EMC and ESD.
Solid State Disks do not have sensitive
rotating components. They are totally silent in
operation and have a low current consumption.
You can write, read and delete the data just like
a conventional hard disk. Mechanical hard disks
in mobile systems and industrial computers can be replaced
by pin-compatible Solid State Disks.
Memtech Solid State Disks
A Wear-Leveling Algorithm is implemented
in all drives for a high data reliability, as well as the Kicker™ Hold
Up Circuit. It is intended to prevent drive destruction
if writing is suddenly interrupted by a disturbed power supply.
Every drive is subjected to Memtech’s exacting EnduroTest™ in
which each drive is fully tested under environmental and
voltage extremes to guarantee data integrity under even the
harshest conditions.
Optionally, some products are available with a Security
Erase feature and all with a Conformal
Coating to protect them against moisture. |
|
