ZeusIOPS is a unique solid state drive designed to create
a storage performance revolution for
enterprise applications. ZeusIOPS enables storage systems to
realize outstanding, sustainable
Input/Outputs per second to relieve performance bottlenecks associated
with traditional rotating
media disk drives.

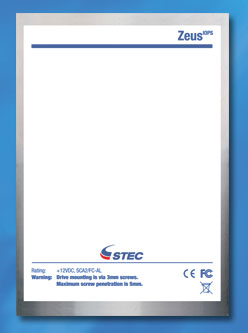

ZeusIOPS 3.5" Fibre Channel Solid State
Drive has a sustained read/write performance
up to 200/100 MB/sec , 52K read/18K write random
IOPS operations and capacities
up to 146 GB inside a 25.4 mm
high case.
3.5" Drive with 40-pin SCA-2
interface (hot-plugging).
Completely solid state – no moving parts.
Available in capacities ranging from 18 to 146 GB using SLC (Single
Level Cell) NAND Flash.
Up to 200/100 MByte/sec sustained read/write performance.
12 volt ±10 %.
Environmental Specifications:
Temperature range (operating) from 0°C to +70°C
Storage temperature (non-operating) from –40°C to +85°C.
Humidity 8 to 90 %, non condensing.
Altitude 80.000 ft.
Shock 1 G (operating); Vibration 60 G random
(operating).
Endurance:
Powerful EDC (Error Detection) and ECC (Error Correction),
wear-leveling and bad block mapping algorithms for exceptional
data reliability.
10 year data integrity.
5 year product warranty.
Optional:
Different Purge Features (Security Erase).
| |
Available versions (with item number)
18 GB ZeusIOPS 3.5" Fibre
Channel – 200/100 MB/s
altec Item no.: B67MT18
STEC Item no.: Z16F318CU
36 GB ZeusIOPS 3.5" Fibre Channel – 200/100 MB/s
altec Item no.: B67MT36
STEC Item no.: Z16F336CU
73 GB ZeusIOPS 3.5" Fibre Channel – 200/100 MB/s
altec Item no.: B67MT73
STEC Item no.: Z16F373CU
146 GB ZeusIOPS 3.5" Fibre Channel – 200/100 MB/s
altec Item no.: B67MT146
STEC Item no.: Z16F3146CU
What are Solid State Disks?
The common feature of all Solid State Disks is that the data
is stored on Flash chips. Solid State Disks are
insensitive to shock, vibration, temperature effects
and extreme air pressure changes and are highly resistant
to EMC and ESD.
Solid State Disks do not have sensitive
rotating components. They are totally silent in
operation and have a low current consumption.
You can write, read and delete the data just like
a conventional hard disk. Mechanical hard disks
in mobile systems and industrial computers can be replaced
by pin-compatible Solid State Disks.
|
|
