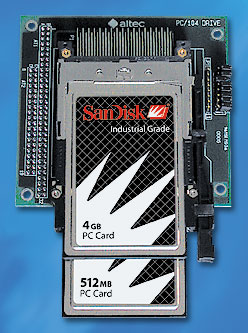

| PC Card Drive
as an industrial-strength extension module for the 16-bit PC/104
system bus.
Three versions available: normal version; stacking version;
rugged version with a single PC Card slot with metal
guide rails and cover sheet.
Double slot for PC Card memory media such as SRAM and
ATA PC Cards or HDDs (2 x Type I or II or 1 x
Type III); I/O PC Cards not supported.
Compatible with CompactFlash or Smart
Media Cards, MultiMediaCards, SD Cards, Microdrive miniature hard disks,
Memory Sticks or xD-Cards
using
the appropriate PC Card adapter.
Provided with drivers for Windows
95/98, ME,NT, 2000,XP, OS/2; bootable under MS-DOS without needing a
driver; no additional software required.
Master or slave mode and I/O
address configurable with jumpers.
Temperature range –25°C to +75°C (operating) for rugged
environmental conditions.
Version with extended temperature range available on request:
–40°C to +85°C (operating).
|
|
Available versions (with item number)
PC/104 Drive – 19AL-111
PC/104 Drive stacked version – 19AL-114
|
|
