ATA Flash PC Cards Typ II with SiliconSystems™ memory
technology based on SiliconDrive II™
Industrial Grade quality; True IDE/UDMA Mode. Three versions: Solid version, versions to IP54 and IP68 specifications, Hermetic Military version with fully sealed case.
All versions are mechanically very rugged – high
resistance to vibration and shock. Unique metal case design
ensures high resistance to deformation, EMC, excellent protection
against ESD and corrosion.
Version IP54 in V2A stainless
steel case; dust proof due to
special connector; proof against water splashes;
with extended temperature range from –40°C to
+85°C (operating); 5 years warranty.
Version IP68 in V2A stainless steel case; dust proof and water proof to 1 meter immersion depth (non-operating); with extended temperature range from –40°C to +85°C (operating); 7 years warranty.
Version Hermetic Military in Bronze
alloy
case (CuNi9SN2); suitable for aerospace;
meets MIL specs for vacuum, vibration and
shock (MIL-STD 202 F, Table 213-1/Test F, 310C);
corrosion proof; fungus resistant; can be submerged
to 30 m (non-operating), absolutely dust
proof, with extended temperature range from
–
40°C to +85°C (operating); 2 years
warranty.
Capacities fom 1GB to 16 GB.

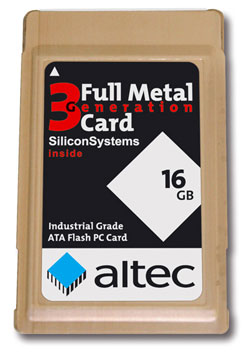

above: Full Metal Card 3rd Generation Hermetic Military

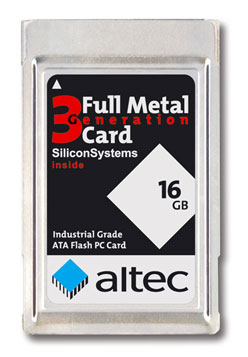

top right: Full Metal Card 3rd Generation IP54 and IP68
DataSafe™ is a registered trademark of Diehl Metall Stiftung & Co.
KG. |
|
Available versions (with item number)
1 GB FMC 3rd Generation IP54 – 14DL1024GP
2 GB FMC 3rd Generation IP54 – 14DL2048GP
4 GB FMC 3rd Generation IP54 – 14DL4096GP
8 GB FMC 3rd Generation IP54 – 14DL8192GP
16 GB FMC 3rd Generation IP54 – 14DL16384GP
1 GB FMC 3rd Generation IP68 – 14DL1024G68
2 GB FMC 3rd Generation IP68 – 14DL2048G68
4 GB FMC 3rd Generation IP68 – 14DL4096G68
8 GB FMC 3rd Generation IP68 – 14DL8192G68
16 GB FMC 3rd Generation IP68 – 14DL16384G68
1 GB FMC 3rd Generation Hermetic Military – 14DL1024GM
2 GB FMC 3rd Generation Hermetic Military – 14DL2048GM
4 GB FMC 3rd Generation Hermetic Military – 14DL4096GM
8 GB FMC 3rd Generation Hermetic Military – 14DL8192GM
16 GB FMC 3rd Generation Hermetic Military – 14DL16384GM
For all Full Metal Cards: customer
specific label (minimum order quantity 500 label) – please
ask.
|
|
